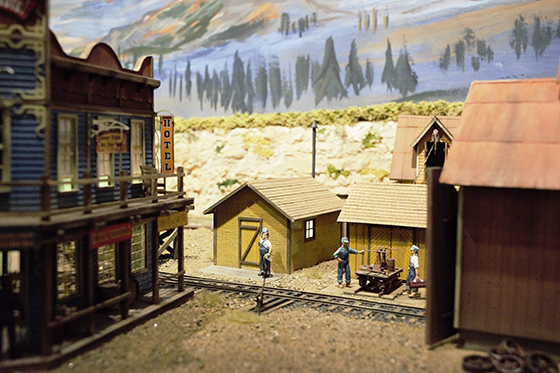

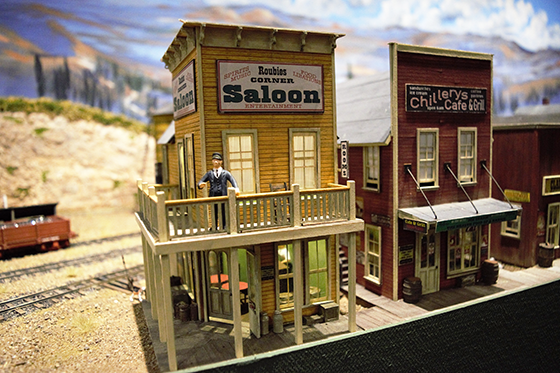

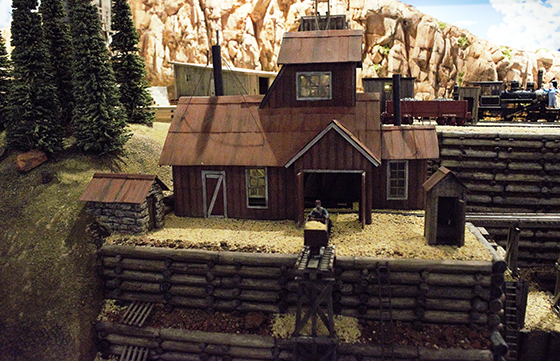

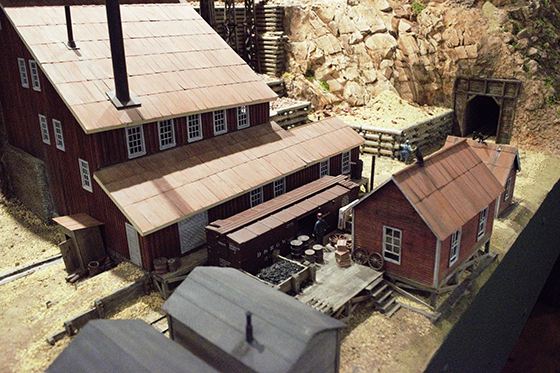

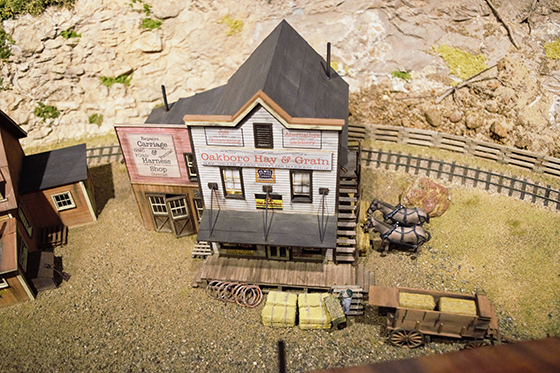

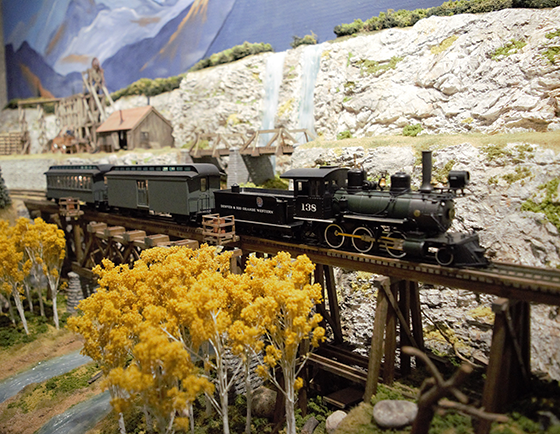

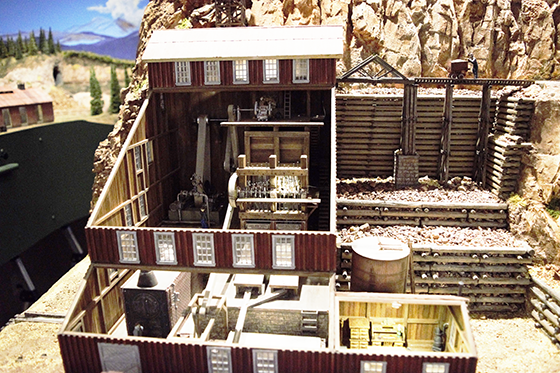

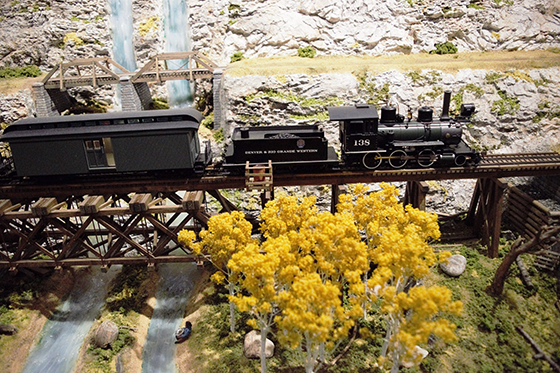

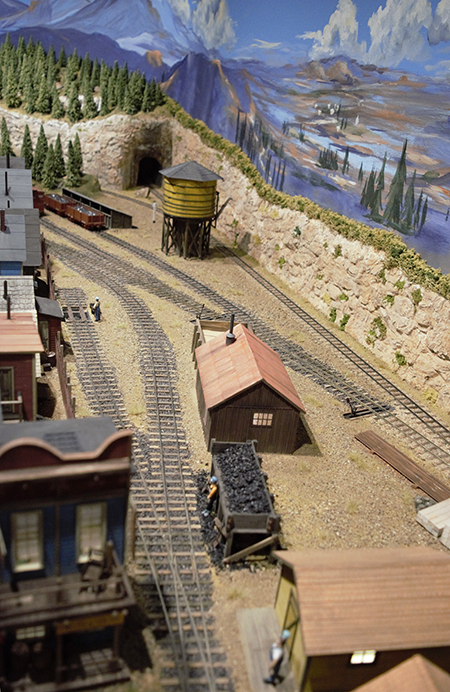

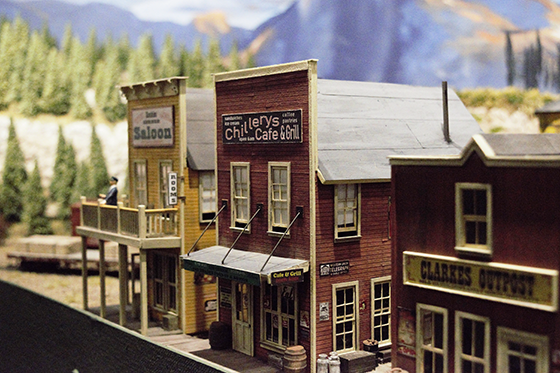

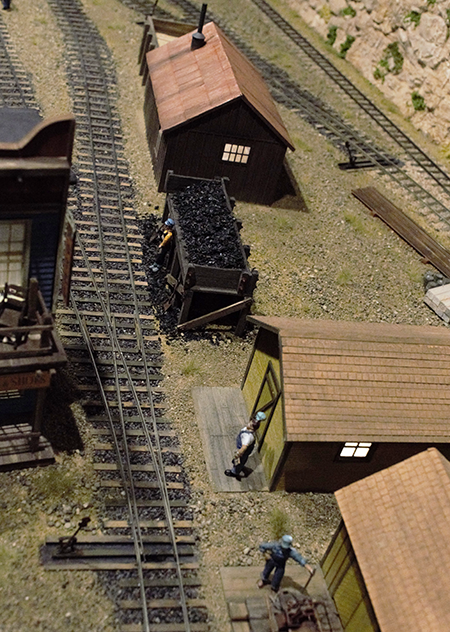

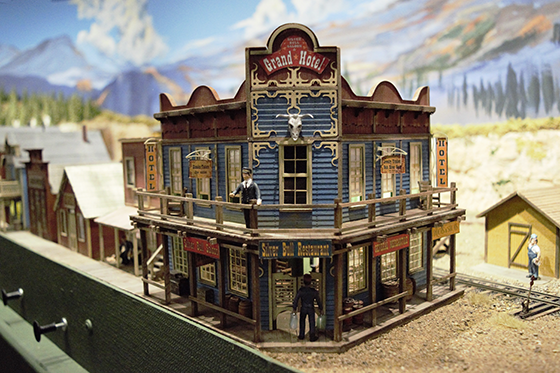

Bob’s layout features hand-laid track and switches plus scratchbuilt and craftsman kit bridges and structures, all of which have detailed interiors and lighting. The setting is Colorado narrow-gauge mining country, and the mountain scenery is exceptional. All of the switches are operated with choke cables and Blue Point switch machines. Entry to the room is via a lift out section and the open grid bench work is supported with heavy duty shelf brackets so there are no legs needed. There is a 2-foot tall custom painted curved backdrop installed on all 4 walls, and the 4 x 7 closet is used as a staging area. The layout is illuminated with track lights and there are strings of blue light hidden behind the backdrop to provide soft night time lighting. Flexible metal conduit was used to create switched 110-volt circuits so that the lights and railroad power supplies can be easily switched off when leaving the room. Colorado mountain scenery is 100% complete. A recent addition is a shadowbox below ground level showing the interior structure of a mine. The layout is controlled using an NCE DCC system.
Photos
Click to enlarge
Track Plan
Click to enlarge
